onlineTPS.com

433 MHz ASK RF Transmitter Receiver Module

New 433 MHz ASK RF Transmitter Receiver Module with HT12E+HT12D (4Bit Encoder+Decoder IC)200 Meters Long Range*

*200 Meters Long Range in STANDARD LINE OF  SIGHT  , Suitable for Wireless Remote  Robot Control etc.

Specification

• Range in open space(Standard Conditions) : 200 Meters
• RX Receiver Frequency : 433 MHz
• RX Typical Sensitivity : 105 Dbm
• RX Supply Current : 3.5 mA
• RX IF Frequency : 1MHz
• Low Power Consumption
• Easy For Application
• RX Operating Voltage : 5V
• TX Frequency Range : 433.92 MHz
• TX Supply Voltage : 3V ~ 6V
• TX Out Put Power : 4 ~ 12 Dbm

PICKIT3 USB Programmer Debugger TPS-01307

TPS-01307

Microchip PICKIT3 USB Programmer/Debugger (USB Cable free) Product Description  PICkit 3 Features USB...

Microchip PICKIT3 USB Programmer/Debugger (USB Cable free)

PICkit 3 Features

• USB (Full speed 12 Mbits/s interface to host PC)
• Real-time execution
• MPLAB IDE compatible
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Totally enclosed
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint
• Program up to 512K byte flash with the Programmer-to-Go

The MPLAB PICkit 3 allows debugging and programming of PIC^® and dsPIC^® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).

Pakcage List:

1 PICKIT3 (oem)

1 USB cable

1 6pin cable

Download MPLAB IDE v8.70

Download  stand-alone programmer application for the PICkit 3 here

• Part # : TPS-01307

TPS-01307

Microchip PICKIT3 USB Programmer/Debugger (USB Cable free) Product Description  PICkit 3 Features USB...

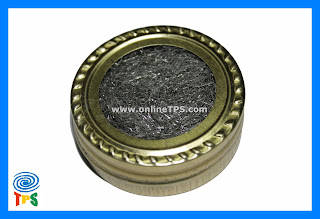

soldering iron bit tip cleaner

  Soldering Iron Bit Tip Cleaner

TPS-01365

Soldering Iron Bit Tip Cleaner Soldering Iron Bit Tip Cleaner



TPS-01365

Soldering Iron Bit Tip Cleaner Soldering Iron Bit Tip Cleaner

IR LED Photodiode Sensors Array for LFR Robot Part # : TPS-00628

TPS-00628

6 Digital IR - Photodiode Sensors Array for LFR Robot 6 IR-Photodiode Sensors Array- for Line following...

6 Digital IR - Photodiode Sensors Array for LFR Robot

6 IR-Photodiode Sensors Array- for Line following robot (LFR) and micro-mouse robot
 (Digital out, Independent Manual Adjustable)

• Ideal for LFR (line-follower Robot)
• obstacles avoiding robots
• obstacles chasing robot
• side wall sensor
• maze solving robots

Special : Output Indicator LED for each Sensor
             It Gives “HIGH” on detecting White/Light color surface
             If you turn Pot (Blue&White color) in Anti-Clockwise:Sensitivity will Increase

Pin-Out

Pin No 1= Sensor-1 Signal Out
Pin No 2= Sensor-2 Signal Out

Pin No 3= Sensor-3 Signal Out
Pin No 4= Sensor-4 Signal Out

Pin No 5= Sensor-5 Signal Out
Pin No 6= Sensor-6 Signal Out

Pin No 7= Not Connected
Pin No 8= Not Connected

Pin No 9= Ground (-)
Pin No 10= +5V Vcc

• Part # : TPS-00628





TPS-00628

6 Digital IR - Photodiode Sensors Array for LFR Robot 6 IR-Photodiode Sensors Array- for Line following...

40000 RPM 12V DC Motor / 27000 RPM 6V DC Motor PMDC

40,000 RPM 12V DC Motor / 27,000 RPM 6V DC Motor (PMDC)

Ideal for Hovercraft , DIY Homemade PCB Drill Machine



TPS-01364

40000 RPM 12V DC/PMDC Motor Specification: Electrical Data (at No Load...

Specification:
Electrical Data (at No Load Conditions):
Bi-Directional DC Motor (PMDC)

• 40,000 RPM at 12V DC (No Load Conditions) Minmum Current 1.85Amp (1850 mA)
• 27,000 RPM at 6V DC (No Load Conditions) Minmum Current 0.95Amp (950 mA)
• These are high RPM, high torque and current motor. There is NO built in fan. We suggest using with a heat-sink or fan for extended long use.

Mechanical Data:

• Shaft Dia              : 2.3mm (Aprox.)
• Shaft Length         : 12mm (Aprox.)
• Total length           : 38mm (Aprox.) Without Shaft
• Motor Dia            : 27mm (Aprox.)
• Mounting Screw Distance : 16mm (Aprox.)
• Weight: 50gms (Aprox.)

Where to Buy Raspberry Pi Model B‎ in India

Where to Buy Raspberry Pi Model B‎ in India

Its Detailed Photographs



 www.onlineTPS.com

 http://www.onlinetps.com/shop/index.php?main_page=product_info&cPath=75_130&products_id=1351

From This Link

TPS-01351

Raspberry Pi Model B Raspberry Pi Model B
